0x00.前言

业务场景需要,详见:https://github.com/yuangezhizao/device_manager

0x01.XL-Driver-Library

The XL-Driver-Library is a universal programming interface you can use to create your own applications while accessing Vector’s powerful hardware interfaces.
You can get the latest version of the library free-of-charge in our downloads. It contains vxlapi.dll and the .NET wrapper for .NET 3.5 or higher applications.

下载得到XL-Driver-Library_V11.6.12.zip,解压安装后路径为C:\Users\Public\Documents\Vector\XL Driver Library 11.6.12

XL Driver Library 11.6.12
XL Driver Library 11.6.12

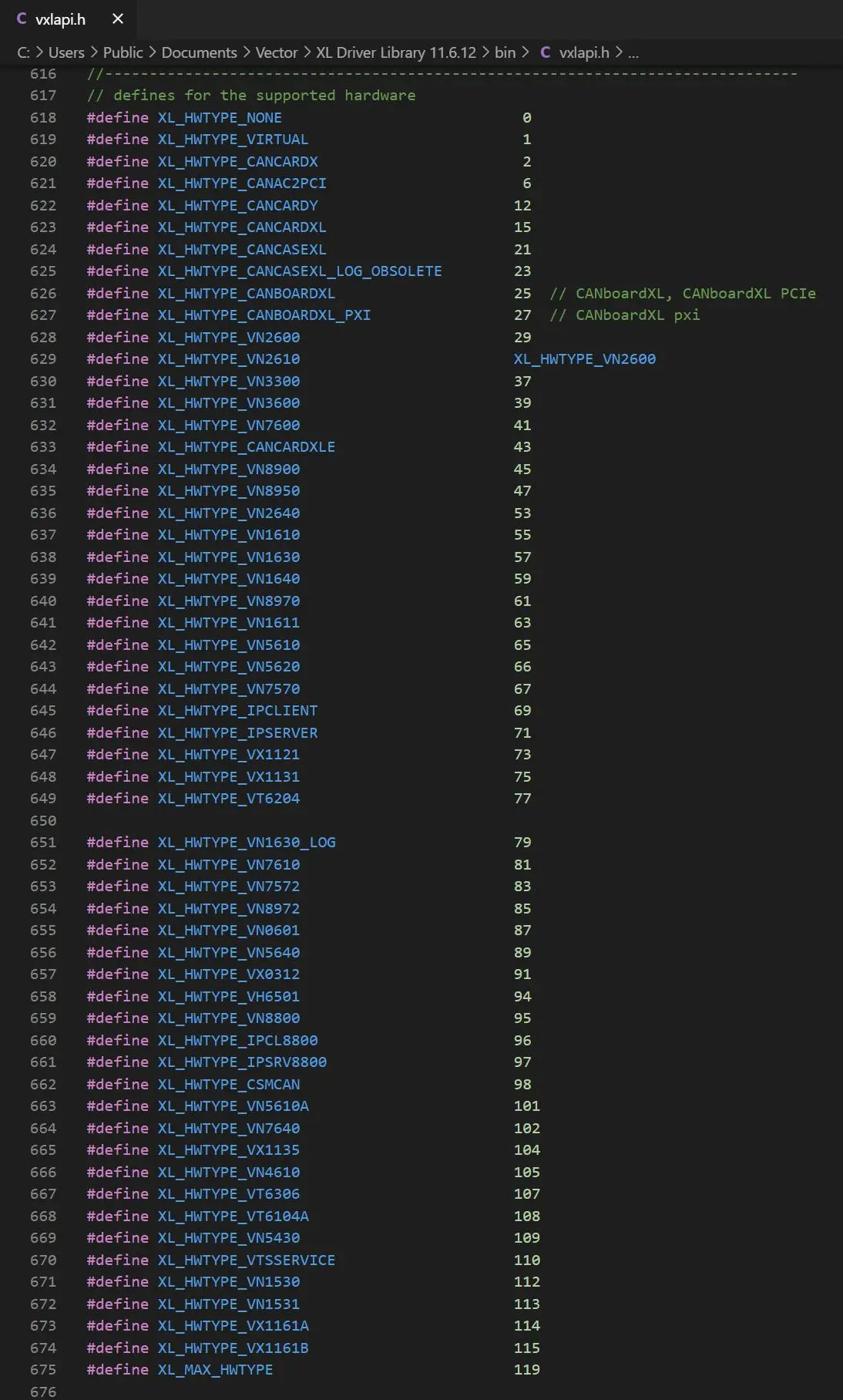

bin目录里面的dll是通用库,其实读到最后就会知道只需要这个dll就足够了

bin
bin

doc目录里是一个PDF手册,exec目录里则是预编译好的可执行二进制文件,示例工程都在samples目录下,举个栗子,打开这个C++工程(纯C的工程就不看了

xlCANdemo_Csharp
xlCANdemo_Csharp
点击此处 ← 查看代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
/*-------------------------------------------------------------------------------------------
| File : Class1.cs
| Project : Vector CAN .NET Example
|
| Description : This example demonstrates the basic CAN functionality of the XL.NET Driver Library
|--------------------------------------------------------------------------------------------
| Copyright (c) 2020 by Vector Informatik GmbH. All rights reserved.
|-------------------------------------------------------------------------------------------*/

using System;
using System.Threading;
using Microsoft.Win32.SafeHandles;
using vxlapi_NET;


namespace xlCANDemo {
/// <summary>
/// Summary description for Class1.
/// </summary>
class Class1 {
// -----------------------------------------------------------------------------------------------
// Global variables
// -----------------------------------------------------------------------------------------------
// Driver access through XLDriver (wrapper)
private static XLDriver CANDemo = new XLDriver();
private static String appName = "xlCANdemoNET";

// Driver configuration
private static XLClass.xl_driver_config driverConfig = new XLClass.xl_driver_config();

// Variables required by XLDriver
private static XLDefine.XL_HardwareType hwType = XLDefine.XL_HardwareType.XL_HWTYPE_NONE;
private static uint hwIndex = 0;
private static uint hwChannel = 0;
private static int portHandle = -1;
private static UInt64 accessMask = 0;
private static UInt64 permissionMask = 0;
private static UInt64 txMask = 0;
private static UInt64 rxMask = 0;
private static int txCi = -1;
private static int rxCi = -1;
private static EventWaitHandle xlEvWaitHandle = new EventWaitHandle(false, EventResetMode.AutoReset, null);

// RX thread
private static Thread rxThread;
private static bool blockRxThread = false;
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// MAIN
///
/// Sends and receives CAN messages using main methods of the "XLDriver" class.
/// This demo requires two connected CAN channels (Vector network interface).
/// The configuration is read from Vector Hardware Config (vcanconf.exe).
/// </summary>
// -----------------------------------------------------------------------------------------------
[STAThread]
static int Main(string[] args) {
XLDefine.XL_Status status;

Console.WriteLine("-------------------------------------------------------------------");
Console.WriteLine(" xlCANdemo.NET C# V11.6 ");
Console.WriteLine("Copyright (c) 2020 by Vector Informatik GmbH. All rights reserved.");
Console.WriteLine("-------------------------------------------------------------------\n");

// print .NET wrapper version
Console.WriteLine("vxlapi_NET : " + typeof(XLDriver).Assembly.GetName().Version);

// Open XL Driver
status = CANDemo.XL_OpenDriver();
Console.WriteLine("Open Driver : " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();


// Get XL Driver configuration
status = CANDemo.XL_GetDriverConfig(ref driverConfig);
Console.WriteLine("Get Driver Config : " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();


// Convert the dll version number into a readable string
Console.WriteLine("DLL Version : " + CANDemo.VersionToString(driverConfig.dllVersion));


// Display channel count
Console.WriteLine("Channels found : " + driverConfig.channelCount);


// Display all found channels
for (int i = 0; i < driverConfig.channelCount; i++) {
Console.WriteLine("\n [{0}] " + driverConfig.channel[i].name, i);
Console.WriteLine(" - Channel Mask : " + driverConfig.channel[i].channelMask);
Console.WriteLine(" - Transceiver Name: " + driverConfig.channel[i].transceiverName);
Console.WriteLine(" - Serial Number : " + driverConfig.channel[i].serialNumber);
}

// If the application name cannot be found in VCANCONF...
if ((CANDemo.XL_GetApplConfig(appName, 0, ref hwType, ref hwIndex, ref hwChannel, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN) != XLDefine.XL_Status.XL_SUCCESS) ||
(CANDemo.XL_GetApplConfig(appName, 1, ref hwType, ref hwIndex, ref hwChannel, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN) != XLDefine.XL_Status.XL_SUCCESS)) {
//...create the item with two CAN channels
CANDemo.XL_SetApplConfig(appName, 0, XLDefine.XL_HardwareType.XL_HWTYPE_NONE, 0, 0, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN);
CANDemo.XL_SetApplConfig(appName, 1, XLDefine.XL_HardwareType.XL_HWTYPE_NONE, 0, 0, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN);
PrintAssignErrorAndPopupHwConf();
}

// Request the user to assign channels until both CAN1 (Tx) and CAN2 (Rx) are assigned to usable channels
while (!GetAppChannelAndTestIsOk(0, ref txMask, ref txCi) || !GetAppChannelAndTestIsOk(1, ref rxMask, ref rxCi))
{
PrintAssignErrorAndPopupHwConf();
}

PrintConfig();

accessMask = txMask | rxMask;
permissionMask = accessMask;

// Open port
status = CANDemo.XL_OpenPort(ref portHandle, appName, accessMask, ref permissionMask, 1024, XLDefine.XL_InterfaceVersion.XL_INTERFACE_VERSION, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN);
Console.WriteLine("\n\nOpen Port : " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();

// Check port
status = CANDemo.XL_CanRequestChipState(portHandle, accessMask);
Console.WriteLine("Can Request Chip State: " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();

// Activate channel
status = CANDemo.XL_ActivateChannel(portHandle, accessMask, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN, XLDefine.XL_AC_Flags.XL_ACTIVATE_NONE);
Console.WriteLine("Activate Channel : " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();

// Initialize EventWaitHandle object with RX event handle provided by DLL
int tempInt = -1;
status = CANDemo.XL_SetNotification(portHandle, ref tempInt, 1);
xlEvWaitHandle.SafeWaitHandle = new SafeWaitHandle(new IntPtr(tempInt), true);

Console.WriteLine("Set Notification : " + status);
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();

// Reset time stamp clock
status = CANDemo.XL_ResetClock(portHandle);
Console.WriteLine("Reset Clock : " + status + "\n\n");
if (status != XLDefine.XL_Status.XL_SUCCESS) PrintFunctionError();

// Run Rx Thread
Console.WriteLine("Start Rx thread...");
rxThread = new Thread(new ThreadStart(RXThread));
rxThread.Start();

// User information
Console.WriteLine("Press <ENTER> to transmit CAN messages \n <b>, <ENTER> to block Rx thread for rx-overrun-test \n <B>, <ENTER> burst of CAN TX messages \n <x>, <ENTER> to exit");

// Transmit CAN data
while (true) {
if (blockRxThread) Console.WriteLine("Rx thread blocked.");


// Read user input
string str = Console.ReadLine();
if (str == "b") blockRxThread = !blockRxThread;
else if (str == "B") {
for (int i = 0; i < 1000; i++) {
// Burst of CAN frames
CANTransmitDemo();
}
}
else if (str == "x") break;
else {
// Send CAN frames
CANTransmitDemo();
}
}

// Kill Rx thread
rxThread.Abort();
Console.WriteLine("Close Port : " + CANDemo.XL_ClosePort(portHandle));
Console.WriteLine("Close Driver : " + CANDemo.XL_CloseDriver());

return 0;
}
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// Error message/exit in case of a functional call does not return XL_SUCCESS
/// </summary>
// -----------------------------------------------------------------------------------------------
private static int PrintFunctionError() {
Console.WriteLine("\nERROR: Function call failed!\nPress any key to continue...");
Console.ReadKey();
return -1;
}
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// Displays the Vector Hardware Configuration.
/// </summary>
// -----------------------------------------------------------------------------------------------
private static void PrintConfig() {
Console.WriteLine("\n\nAPPLICATION CONFIGURATION");

foreach (int channelIndex in new int[] {txCi, rxCi}) {
Console.WriteLine("-------------------------------------------------------------------");
Console.WriteLine("Configured Hardware Channel : " + driverConfig.channel[channelIndex].name);
Console.WriteLine("Hardware Driver Version : " + CANDemo.VersionToString(driverConfig.channel[channelIndex].driverVersion));
Console.WriteLine("Used Transceiver : " + driverConfig.channel[channelIndex].transceiverName);
}

Console.WriteLine("-------------------------------------------------------------------\n");
}
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// Error message if channel assignment is not valid and popup VHwConfig, so the user can correct the assignment
/// </summary>
// -----------------------------------------------------------------------------------------------
private static void PrintAssignErrorAndPopupHwConf() {
Console.WriteLine("\nPlease check application settings of \"" + appName + " CAN1/CAN2\",\nassign them to available hardware channels and press enter.");
CANDemo.XL_PopupHwConfig();
Console.ReadKey();
}
// -----------------------------------------------------------------------------------------------

// -----------------------------------------------------------------------------------------------
/// <summary>
/// Retrieve the application channel assignment and test if this channel can be opened
/// </summary>
// -----------------------------------------------------------------------------------------------
private static bool GetAppChannelAndTestIsOk(uint appChIdx, ref UInt64 chMask, ref int chIdx)
{
XLDefine.XL_Status status = CANDemo.XL_GetApplConfig(appName, appChIdx, ref hwType, ref hwIndex, ref hwChannel, XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN);
if (status != XLDefine.XL_Status.XL_SUCCESS)
{
Console.WriteLine("XL_GetApplConfig : " + status);
PrintFunctionError();
}

chMask = CANDemo.XL_GetChannelMask(hwType, (int)hwIndex, (int)hwChannel);
chIdx = CANDemo.XL_GetChannelIndex(hwType, (int)hwIndex, (int)hwChannel);
if (chIdx < 0 || chIdx >= driverConfig.channelCount)
{
// the (hwType, hwIndex, hwChannel) triplet stored in the application configuration does not refer to any available channel.
return false;
}

// test if CAN is available on this channel
return (driverConfig.channel[chIdx].channelBusCapabilities & XLDefine.XL_BusCapabilities.XL_BUS_ACTIVE_CAP_CAN) != 0;
}
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// Sends some CAN messages.
/// </summary>
// -----------------------------------------------------------------------------------------------
public static void CANTransmitDemo() {
XLDefine.XL_Status txStatus;

// Create an event collection with 2 messages (events)
XLClass.xl_event_collection xlEventCollection = new XLClass.xl_event_collection(2);

// event 1
xlEventCollection.xlEvent[0].tagData.can_Msg.id = 0x100;
xlEventCollection.xlEvent[0].tagData.can_Msg.dlc = 8;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[0] = 1;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[1] = 2;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[2] = 3;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[3] = 4;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[4] = 5;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[5] = 6;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[6] = 7;
xlEventCollection.xlEvent[0].tagData.can_Msg.data[7] = 8;
xlEventCollection.xlEvent[0].tag = XLDefine.XL_EventTags.XL_TRANSMIT_MSG;

// event 2
xlEventCollection.xlEvent[1].tagData.can_Msg.id = 0x200;
xlEventCollection.xlEvent[1].tagData.can_Msg.dlc = 8;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[0] = 9;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[1] = 10;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[2] = 11;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[3] = 12;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[4] = 13;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[5] = 14;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[6] = 15;
xlEventCollection.xlEvent[1].tagData.can_Msg.data[7] = 16;
xlEventCollection.xlEvent[1].tag = XLDefine.XL_EventTags.XL_TRANSMIT_MSG;


// Transmit events
txStatus = CANDemo.XL_CanTransmit(portHandle, txMask, xlEventCollection);
Console.WriteLine("Transmit Message : " + txStatus);
}
// -----------------------------------------------------------------------------------------------




// -----------------------------------------------------------------------------------------------
/// <summary>
/// EVENT THREAD (RX)
///
/// RX thread waits for Vector interface events and displays filtered CAN messages.
/// </summary>
// -----------------------------------------------------------------------------------------------
public static void RXThread() {
// Create new object containing received data
XLClass.xl_event receivedEvent = new XLClass.xl_event();

// Result of XL Driver function calls
XLDefine.XL_Status xlStatus = XLDefine.XL_Status.XL_SUCCESS;


// Note: this thread will be destroyed by MAIN
while (true) {
// Wait for hardware events
if (xlEvWaitHandle.WaitOne(1000)) {
// ...init xlStatus first
xlStatus = XLDefine.XL_Status.XL_SUCCESS;

// afterwards: while hw queue is not empty...
while (xlStatus != XLDefine.XL_Status.XL_ERR_QUEUE_IS_EMPTY) {
// ...block RX thread to generate RX-Queue overflows
while (blockRxThread) { Thread.Sleep(1000); }

// ...receive data from hardware.
xlStatus = CANDemo.XL_Receive(portHandle, ref receivedEvent);

// If receiving succeed....
if (xlStatus == XLDefine.XL_Status.XL_SUCCESS) {
if ((receivedEvent.flags & XLDefine.XL_MessageFlags.XL_EVENT_FLAG_OVERRUN) != 0) {
Console.WriteLine("-- XL_EVENT_FLAG_OVERRUN --");
}

// ...and data is a Rx msg...
if (receivedEvent.tag == XLDefine.XL_EventTags.XL_RECEIVE_MSG) {
if ((receivedEvent.tagData.can_Msg.flags & XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_OVERRUN) != 0) {
Console.WriteLine("-- XL_CAN_MSG_FLAG_OVERRUN --");
}

// ...check various flags
if ((receivedEvent.tagData.can_Msg.flags & XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_ERROR_FRAME)
== XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_ERROR_FRAME) {
Console.WriteLine("ERROR FRAME");
}

else if ((receivedEvent.tagData.can_Msg.flags & XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_REMOTE_FRAME)
== XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_REMOTE_FRAME) {
Console.WriteLine("REMOTE FRAME");
}

else {
Console.WriteLine(CANDemo.XL_GetEventString(receivedEvent));
}
}
}
}
}
// No event occurred
}
}
// -----------------------------------------------------------------------------------------------
}
}

不想【查看代码】的话,就看下面这张截图,也足够能说明问题了

serialNumber
serialNumber

最后,再补一个VB版本的吧(

点击此处 ← 查看代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
Option Explicit On

Imports System
Imports System.Runtime.InteropServices
Imports System.Threading
Imports vxlapi_NET


Namespace xlCANdemo

' <summary>
' Summary description for Class1.
' </summary>
Class Class1

' -----------------------------------------------------------------------------------------------
' DLL Import for RX events
' -----------------------------------------------------------------------------------------------
<DllImport("kernel32.dll", SetLastError:=True)> _
Shared Function WaitForSingleObject(ByVal handle As Integer, ByVal timeOut As Integer) As Integer
End Function
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' Global variables
' -----------------------------------------------------------------------------------------------
'create port channel object
Shared appName As String = "xlCANdemoNET"
Shared CANDemo As XLDriver = New XLDriver
Shared driverConfig As XLClass.xl_driver_config = New XLClass.xl_driver_config
Shared rxThread As Thread
Shared input As String
Shared hwType As UInt32
Shared hwIndex As UInt32
Shared hwChannel As UInt32
Shared busTypeCAN As XLDefine.XL_BusTypes = XLDefine.XL_BusTypes.XL_BUS_TYPE_CAN
Shared flags As UInt32
Shared portHandle As Int32
Shared eventHandle As Int32
Shared accessMask As UInt64
Shared txMask As UInt64
Shared permissionMask As UInt64
Shared channelIndex As Int32
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' <summary>
' MAIN
'
' Sends and receives CAN messages using main methods of the "XLDriver" class.
' This demo requires two connected CAN channels (Vector network interface).
' The configuration is read from Vector Hardware Config (vcanconf.exe).
' </summary>
' -----------------------------------------------------------------------------------------------
<STAThread()> _
Shared Sub Main()

Dim i As Integer

Console.WriteLine("-------------------------------------------------------------------")
Console.WriteLine(" xlCANdemo.NET VBnet V11.6 ")
Console.WriteLine("Copyright (c) 2020 by Vector Informatik GmbH. All rights reserved.")
Console.WriteLine("-------------------------------------------------------------------")

' Open XL Driver
Console.WriteLine("Open Driver : " + CANDemo.XL_OpenDriver().ToString())

' Get the complete XL Driver configuration, stored in driverConfig object
Console.WriteLine("Get Driver Config : " + CANDemo.XL_GetDriverConfig(driverConfig).ToString())

' Convert the dll version to a readable string
Console.WriteLine("DLL Version : " + CANDemo.VersionToString(driverConfig.dllVersion))

' Display channel count
Console.WriteLine("Channels found : " + driverConfig.channelCount.ToString())

' Display found channels
For i = 0 To (Convert.ToInt32(driverConfig.channelCount) - Convert.ToInt32(1))
Console.WriteLine(" [{0}] " + driverConfig.channel(i).name, i)
Console.WriteLine(" - Channel Mask : " + driverConfig.channel(i).channelMask.ToString())
Console.WriteLine(" - Transceiver Name: " + driverConfig.channel(i).transceiverName.ToString())
Console.WriteLine(" - Serial Number : " + driverConfig.channel(i).serialNumber.ToString())
Console.WriteLine()
Next

' If application not found in VCANCONF....
If CANDemo.XL_GetApplConfig(appName, Convert.ToUInt32(0), hwType, hwIndex, hwChannel, busTypeCAN) <> XLDefine.XL_Status.XL_SUCCESS Or CANDemo.XL_GetApplConfig(appName, Convert.ToUInt32(1), hwType, hwIndex, hwChannel, busTypeCAN) <> XLDefine.XL_Status.XL_SUCCESS Then

' ..create the item with 2 channels
CANDemo.XL_SetApplConfig(appName, Convert.ToUInt32(0), Convert.ToUInt32(0), Convert.ToUInt32(0), Convert.ToUInt32(0), Convert.ToUInt32(0))
CANDemo.XL_SetApplConfig(appName, Convert.ToUInt32(1), Convert.ToUInt32(0), Convert.ToUInt32(0), Convert.ToUInt32(0), Convert.ToUInt32(0))
PrintAssignError()

Else
Try

' Read setting of CAN1
CANDemo.XL_GetApplConfig(appName, Convert.ToUInt32(0), hwType, hwIndex, hwChannel, busTypeCAN)
accessMask = CANDemo.XL_GetChannelMask(Convert.ToInt32(hwType), Convert.ToInt32(hwIndex), Convert.ToInt32(hwChannel))
txMask = accessMask
PrintConfig()

' Read setting of CAN2
CANDemo.XL_GetApplConfig(appName, Convert.ToUInt32(1), hwType, hwIndex, hwChannel, busTypeCAN)
accessMask = Convert.ToUInt64(Convert.ToInt32(accessMask) Or Convert.ToInt32(CANDemo.XL_GetChannelMask(Convert.ToInt32(hwType), Convert.ToInt32(hwIndex), Convert.ToInt32(hwChannel))))

permissionMask = Convert.ToUInt64(Convert.ToInt32(accessMask) Or Convert.ToInt32(accessMask))
PrintConfig()

' Open port
Console.WriteLine("Open Port : " + CANDemo.XL_OpenPort(portHandle, appName, accessMask, permissionMask, Convert.ToUInt32(1024), XLDefine.XL_InterfaceVersion.XL_INTERFACE_VERSION, busTypeCAN).ToString())

' Check port
Console.WriteLine("Can Request Chip State: " + CANDemo.XL_CanRequestChipState(portHandle, accessMask).ToString())

' Activate channel
Console.WriteLine("Activate Channel : " + CANDemo.XL_ActivateChannel(portHandle, accessMask, busTypeCAN, flags).ToString())

' Get RX event handle
Console.WriteLine("Set Notification : " + CANDemo.XL_SetNotification(portHandle, eventHandle, 1).ToString())

' Reset time stamp clock
Console.WriteLine("Reset Clock : " + CANDemo.XL_ResetClock(portHandle).ToString())

' Create and start Rx thread
Dim rxThread As New Thread(AddressOf RX_Thread)
rxThread.Start()


Console.WriteLine("Press <ENTER> to transmit CAN data. Press <x>, <ENTER> to close application.")
While Not (Console.ReadLine Like "[xX]")
' Transmit some data
CANTransmitDemo()
Console.WriteLine("Transmitted")

End While

rxThread.Abort()


Catch
' No channel assigned to hardware
PrintAssignError()
End Try
End If
End Sub
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' <summary>
' Displays Vector Hardware Configuration.
' </summary>
' -----------------------------------------------------------------------------------------------
Public Shared Sub PrintConfig()
channelIndex = CANDemo.XL_GetChannelIndex(Convert.ToInt32(hwType), Convert.ToInt32(hwIndex), Convert.ToInt32(hwChannel))
Console.WriteLine("APPLICATION CONFIGURATION")
Console.WriteLine("-------------------------------------------------------------------")
Console.WriteLine("Configured Hardware Channel : " + driverConfig.channel(channelIndex).name)
Console.WriteLine("Hardware Driver Version : " + CANDemo.VersionToString(driverConfig.channel(channelIndex).driverVersion))
Console.WriteLine("Used Transceiver : " + driverConfig.channel(channelIndex).transceiverName)
Console.WriteLine("-------------------------------------------------------------------")
End Sub
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' <summary>
' Error message if channel assignment is not valid.
' </summary>
' -----------------------------------------------------------------------------------------------
Public Shared Sub PrintAssignError()
Console.WriteLine(Chr(10) + "Please check application settings of" + Chr(34) + appName + " CAN1/CAN2" + Chr(34) + Chr(10) + "and assign it to an available hardware channel and restart application.")
CANDemo.XL_PopupHwConfig()
Console.ReadLine()
End Sub
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' <summary>
' Sends some CAN messages.
' </summary>
' -----------------------------------------------------------------------------------------------
Public Shared Sub CANTransmitDemo()

Dim xlEventCollection As XLClass.xl_event_collection = New XLClass.xl_event_collection(Convert.ToUInt32(2))

xlEventCollection.xlEvent(0).tagData.can_Msg.id = Convert.ToUInt32(&H100)
xlEventCollection.xlEvent(0).tagData.can_Msg.dlc = Convert.ToUInt16(8)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(0) = Convert.ToByte(1)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(1) = Convert.ToByte(2)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(2) = Convert.ToByte(3)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(3) = Convert.ToByte(4)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(4) = Convert.ToByte(5)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(5) = Convert.ToByte(6)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(6) = Convert.ToByte(7)
xlEventCollection.xlEvent(0).tagData.can_Msg.data(7) = Convert.ToByte(8)
xlEventCollection.xlEvent(0).tag = XLDefine.XL_EventTags.XL_TRANSMIT_MSG

xlEventCollection.xlEvent(1).tagData.can_Msg.id = Convert.ToUInt32(&H200)
xlEventCollection.xlEvent(1).tagData.can_Msg.dlc = Convert.ToUInt16(8)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(0) = Convert.ToByte(9)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(1) = Convert.ToByte(10)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(2) = Convert.ToByte(11)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(3) = Convert.ToByte(12)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(4) = Convert.ToByte(13)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(5) = Convert.ToByte(14)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(6) = Convert.ToByte(15)
xlEventCollection.xlEvent(1).tagData.can_Msg.data(7) = Convert.ToByte(16)
xlEventCollection.xlEvent(1).tag = XLDefine.XL_EventTags.XL_TRANSMIT_MSG

Console.WriteLine("Transmit Message : " + CANDemo.XL_CanTransmit(portHandle, txMask, xlEventCollection).ToString())
End Sub
' -----------------------------------------------------------------------------------------------



' -----------------------------------------------------------------------------------------------
' <summary>
' RXThread
' RX Thread waits for Vector interface events and displays filtered CAN messages.
' </summary>
' -----------------------------------------------------------------------------------------------
Public Shared Sub RX_Thread()

' Create new object containing received data
Dim receivedEvent As XLClass.xl_event = New XLClass.xl_event

' Result of XL Driver function calls
Dim xlStatus As XLDefine.XL_Status = XLDefine.XL_Status.XL_SUCCESS

' Result values of WaitForSingleObject
Dim waitResult As XLDefine.WaitResults = New XLDefine.WaitResults


' Note: this thread will be destroyed by MAIN
While (True)

' Wait for hardware events
waitResult = WaitForSingleObject(eventHandle, 1000)

' If event occured...
If (waitResult <> XLDefine.WaitResults.WAIT_TIMEOUT) Then

' init xlStatus
xlStatus = XLDefine.XL_Status.XL_SUCCESS

' afterwards: while hw queue not empty..,
While (xlStatus <> XLDefine.XL_Status.XL_ERR_QUEUE_IS_EMPTY)

' ...receive data from hardware queue.
xlStatus = CANDemo.XL_Receive(portHandle, receivedEvent)

' If receive succeed....
If (xlStatus = XLDefine.XL_Status.XL_SUCCESS) Then

' ...and data was Rx msg...
If (receivedEvent.tag = XLDefine.XL_EventTags.XL_RECEIVE_MSG) Then

' Check various flags
If ((receivedEvent.tagData.can_Msg.flags And XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_ERROR_FRAME) = XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_ERROR_FRAME) Then
Console.WriteLine("ERROR FRAME")

ElseIf ((receivedEvent.tagData.can_Msg.flags And XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_REMOTE_FRAME) = XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_REMOTE_FRAME) Then
Console.WriteLine("REMOTE FRAME")

' Print only "real" Rx messages
ElseIf ((receivedEvent.tagData.can_Msg.flags And XLDefine.XL_MessageFlags.XL_CAN_MSG_FLAG_TX_COMPLETED) = 0) Then
Console.WriteLine(CANDemo.XL_GetEventString(receivedEvent))

End If

End If
End If
End While
End If
' No event occured
End While
' ------------------------------------------------------------------
End Sub
End Class
End Namespace

结果VB版本的看起来更简洁(哭笑不得……

serialNumber
serialNumber

当然还需要对照PDF手册看,不难得知XLchannelConfig这个结构体基本上包含了所有需要的东西

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
typedef struct s_xl_channel_config {
char name [XL_MAX_LENGTH + 1];
unsigned cha hwType;
unsigned char hwIndex;
unsigned char hwChannel;
unsigned short transceiverType;
unsigned int transceiverState;
unsigned char channelIndex;
XLuint64 channelMask;
unsigned int channelCapabilities;
unsigned int channelBusCapabilities;
unsigned char isOnBus;
unsigned int connectedBusType;
XLbusParams busParams;
unsigned int driverVersion;
unsigned int interfaceVersion;
unsigned int raw_data[10];
unsigned int serialNumber;
unsigned int articleNumber;
char transceiverName [XL_MAX_LENGTH + 1];
unsigned int specialCabFlags;
unsigned int dominantTimeout;
unsigned in reserved[8];
} XLchannelConfig;

不过成员hwType又需要参照vxlapi.h寻找具体的类型定义

hwType
hwType

只有搞懂了这个获取逻辑,才能用py的方式来写

0x02.pythonnet - Python.NET

没错,Calling .NET code from Python!
安装是pip3 install pythonnet可不是pip3 install clr(白天看到import clr就顺手进坑可太草了
常用的使用方式比如想加载.NET的程序集,就可以用clrAddReference函数来实现

1
2
3
import clr
clr.AddReference("System.Windows.Forms")
from System.Windows.Forms import Form

写起来基本上就是把C++的函数换成py,其他完全不变

0x03.后记

不知道怎么实现之前一脸懵逼,
看到例程怎么实现的豁然开朗(

0x04.引用

.NET 爱python——pythonnet模块使用
