实验室站 Python 3.8.2 + Flask 1.1.2 + mod_wsgi 4.7.1 + Apache 2.4.43 + HTTP/2 + TLSv1.3 + brotli

年更系列，又开始折腾升级了……

0x00.前言

看见esterTion大佬的BiliPlus上了TLSv1.3，正巧实验室站证书也快一年该续签了，于是大折腾开始了

0x01.Python

2.7.17、3.8.2
~~今天先把本地配好了2.7.15、3.6.8、3.7.2、3.8.0a1，版本的选择靠环境变量的先后顺序决定，PyCharm里倒是可以单独选择~~

然后服务器是腾讯云的一元机

想想从零开始也快折腾了三年了，现在想想还是有必要有一台Windows Server 2012 R2 Database x64（救急）使用的，当然现在Linux也算熟悉了，所以后续再购买服务器就打算使用CentOS了，因为最近白嫖到了一台时长一年的Ubuntu 18.04（据说我发现的第二天一刀套餐就木有了），目前搭了V2ray代理，这个之后单独再写……

云端只安装了3.6.8、3.7.2是因为2不打算再用了，本地配2是因为部分gh的旧项目以及jd-tools，不过它是在Cygwin倒是不受影响……本地配3.8.0a1是因为要~~达成成就~~看一看最新版本的特性……云端是要逐步从3.6.8迁移至3.7.2，根据Stack Overflow 的这个回答How to run celery on windows?

所以为了Celery还是留两个版本吧，顺便准备把pipenv也补上……

还是惯例配好pipy阿里云镜像，升级pip

0x01.Apache24

我个人使用的就是第一个，有br压缩，第二个木有……~~虽然第一个是VC14，第二个是VC15……~~

下载这个12.1 MB大小的httpd-2.4.43-o111f-x64-vc15.zip，含有with LibreSSL 3.0.2, brotli 1.0.7, nghttp 1.40.0, Zlib 1.2.10, PCRE 8.44, APR 1.7.0, APR-Util 1.6.1，目前LibreSSL和OpenSSL版本均含有br库
下载这个11.9 MB大小的httpd-2.4.38-o111a-x64-vc14.zip，含有with OpenSSL 1.1.1a, brotli 1.0.7, nghttp 1.36.0, Zlib 1.2.10, PCRE 8.42, APR 1.6.5, APR-Util 1.6.1，虽然有LibreSSL版本以及OpenSSL 1.0.2、OpenSSL 1.1.0，但是我还是选择了这个，并不是下载量第一的1.0.2，

点击此处 ← 查看折叠

VS16

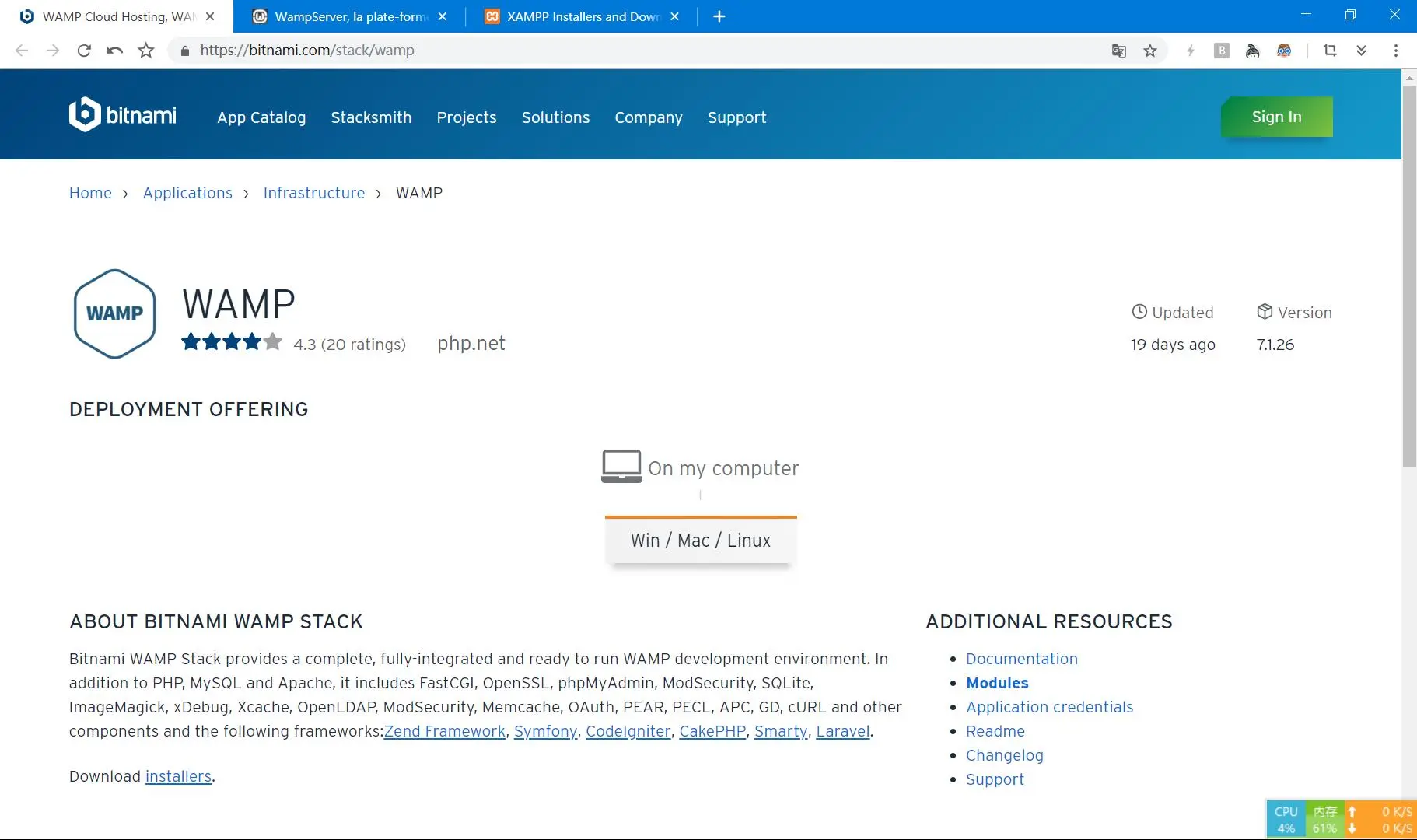

bitnami的这个是一个PHP大软件环境……

玩具？

只有32位的还是算了吧……

修改配置文件：

`/extra/httpd.ahssl.conf`

注释掉这个日志：

#   Per-Server Logging:
#   The home of a custom SSL log file. Use this when you want a
#   compact non-error SSL logfile on a virtual host basis.
CustomLog "${SRVROOT}/logs/ssl_request.log" \
          "%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b" env=HTTPS

增加

<VirtualHost *:443>
    Protocols h2 http/1.1

    SSLEngine on
    ServerName lab.yuangezhizao.cn
    SSLCertificateFile "${SRVROOT}/conf/ssl/2_lab.yuangezhizao.cn.crt"
    SSLCertificateKeyFile "${SRVROOT}/conf/ssl/3_lab.yuangezhizao.cn.key"
    SSLCertificateChainFile "${SRVROOT}/conf/ssl/1_root_bundle.crt"
    DocumentRoot C:\LAB

    Header always set Strict-Transport-Security "max-age=10"
    Header always set X-XSS-Protection "1; mode=block"
    Header always set x-content-type-options nosniff
    Header always set X-Frame-Options SAMEORIGIN

    WSGIScriptAlias / C:\LAB\wsgi.py

    <Directory C:\LAB>
        WSGIScriptReloading On
        Require all granted
        Require host ip
    </Directory>
</VirtualHost>

`/extra/httpd.info.conf`

<Location /server-status>
    SetHandler server-status
    AuthName "server-status"
    AuthType Basic
    AuthUserFile "${SRVROOT}/bin/.htpasswd"
    require user yuangezhizao
</Location>

取消注释：

1	ExtendedStatus On

<Location /server-info>
    SetHandler server-info
    # AuthBasicFake yuangezhizao <password>
    # Require host lab.yuangezhizao.cn
    # Require ip 61.161
    AuthName "server-info"
    AuthType Basic
    AuthUserFile "${SRVROOT}/bin/.htpasswd"
    require user yuangezhizao
</Location>

AuthBasicFake莫名不好使，所以只能采用AuthType Basic了……

`/extra/httpd.vhosts.conf`

<VirtualHost *:80>
    RewriteEngine On
    RewriteRule ^(.*)$ https://%{HTTP_HOST}$1 [R,L]
</VirtualHost>

80强制跳转443

<VirtualHost *:80>
    DocumentRoot "${SRVROOT}/htdocs/webui-aria2"
    DirectoryIndex  index.html
    ServerName aria2.yuangezhizao.cn

    <Directory "${SRVROOT}/htdocs/webui-aria2">
    	Require all granted
    </Directory>
</VirtualHost>

<VirtualHost *:80>
    DocumentRoot "${SRVROOT}/htdocs/status-page"
    DirectoryIndex  index.html
    ServerName status.yuangezhizao.cn

    <Directory "${SRVROOT}/htdocs/status-page">
    	Require all granted
    </Directory>
</VirtualHost>

`/httpd.conf`

终于到了根配置文件了，可以看到Define ENABLE_TLS13 "Yes"就是TLSv1.3
增加LoadModule brotli_module modules/mod_brotli.so，取消注释LoadModule expires_module modules/mod_expires.so，取消注释

1 2	LoadModule filter_module modules/mod_filter.so LoadModule headers_module modules/mod_headers.so

取消注释LoadModule http2_module modules/mod_http2.so，
取消注释LoadModule proxy_module modules/mod_proxy.so、LoadModule proxy_http_module modules/mod_proxy_http.so备用，
取消注释LoadModule rewrite_module modules/mod_rewrite.so，
取消注释LoadModule vhost_alias_module modules/mod_vhost_alias.so，
增加LoadModule wsgi_module modules/mod_wsgi.cp38-win_amd64.pyd，
修改ServerAdmin root@yuangezhizao.cn、ServerName lab.yuangezhizao.cn，
取消注释Include conf/extra/httpd-vhosts.conf、Include conf/extra/httpd-default.conf，
最后是br压缩：

<IfModule brotli_module>
SetOutputFilter BROTLI_COMPRESS
# DEFLATE
# DeflateCompressionLevel 3
SetEnvIfNoCase Request_URI .(?:gif|jpe?g|png)$ no-brotli dont-vary
SetEnvIfNoCase Request_URI .(?:exe|t?gz|zip|bz2|sit|rar)$ no-brotli dont-vary
SetEnvIfNoCase Request_URI .(?:pdf|doc|avi|mov|mp3|rm)$ no-brotli dont-vary
AddOutputFilterByType BROTLI_COMPRESS text/html text/plain text/xml text/css
AddOutputFilterByType BROTLI_COMPRESS text/javascript application/javascript application/x-javascript
AddOutputFilterByType BROTLI_COMPRESS application/json
</IfModule>

0x02.mod_wsgi

Latest release是mod_wsgi-4.7.1版本

历史安装失败，限于版面折叠

点击此处 ← 查看终端

(LAB-HVyfm2Bd) D:\yuangezhizao\Documents\PycharmProjects\LAB>pipenv install mod_wsgi
Installing mod_wsgi…
Looking in indexes: https://pypi.python.org/simple
Collecting mod_wsgi
  Downloading https://files.pythonhosted.org/packages/47/69/5139588686eb40053f8355eba1fe18a8bee94dc3efc4e36720c73e07471a/mod_wsgi-4.6.5.tar.gz (490kB)
    Complete output from command python setup.py egg_info:
    Traceback (most recent call last):
      File "<string>", line 1, in <module>
      File "C:\Users\YUANGE~1\AppData\Local\Temp\pip-install-aabgv042\mod-wsgi\setup.py", line 158, in <module>
        raise RuntimeError('No Apache installation can be found. Set the '
    RuntimeError: No Apache installation can be found. Set the MOD_WSGI_APACHE_ROOTDIR environment to its location.

    ----------------------------------------

Error:  An error occurred while installing mod_wsgi!
Command "python setup.py egg_info" failed with error code 1 in C:\Users\YUANGE~1\AppData\Local\Temp\pip-install-aabgv042\mod-wsgi\

哦，设定环境变量

(LAB-HVyfm2Bd) D:\yuangezhizao\Documents\PycharmProjects\LAB>SET MOD_WSGI_APACHE_ROOTDIR=D:\Apache24
(LAB-HVyfm2Bd) D:\yuangezhizao\Documents\PycharmProjects\LAB>pipenv install mod_wsgi
Installing mod_wsgi…
Looking in indexes: https://pypi.python.org/simple
Collecting mod_wsgi
  Using cached https://files.pythonhosted.org/packages/47/69/5139588686eb40053f8355eba1fe18a8bee94dc3efc4e36720c73e07471a/mod_wsgi-4.6.5.tar.gz
Building wheels for collected packages: mod-wsgi
  Building wheel for mod-wsgi (setup.py): started
  Building wheel for mod-wsgi (setup.py): still running...
  Building wheel for mod-wsgi (setup.py): finished with status 'error'
  Complete output from command c:\users\yuangezhizao\.virtualenvs\lab-hvyfm2bd\scripts\python.exe -u -c "import setuptools, tokenize;__file__='C:\\Users\\YUANGE~1\\AppData\\Lo
cal\\Temp\\pip-install-48e8tnl_\\mod-wsgi\\setup.py';f=getattr(tokenize, 'open', open)(__file__);code=f.read().replace('\r\n', '\n');f.close();exec(compile(code, __file__, 'ex
ec'))" bdist_wheel -d C:\Users\YUANGE~1\AppData\Local\Temp\pip-wheel-z03h3fox --python-tag cp38:
  C:\Python38\Lib\distutils\dist.py:274: UserWarning: Unknown distribution option: 'bugtrack_url'
    warnings.warn(msg)
  running bdist_wheel
  running build
  running build_py
  creating build
  creating build\lib.win-amd64-3.8
  creating build\lib.win-amd64-3.8\mod_wsgi
  copying src\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi
  creating build\lib.win-amd64-3.8\mod_wsgi\server
  copying src\server\apxs_config.py -> build\lib.win-amd64-3.8\mod_wsgi\server
  copying src\server\environ.py -> build\lib.win-amd64-3.8\mod_wsgi\server
  copying src\server\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server
  creating build\lib.win-amd64-3.8\mod_wsgi\server\management
  copying src\server\management\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management
  creating build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
  copying src\server\management\commands\runmodwsgi.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
  copying src\server\management\commands\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
  creating build\lib.win-amd64-3.8\mod_wsgi\docs
  copying docs\_build\html\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\docs
  creating build\lib.win-amd64-3.8\mod_wsgi\images
  copying images\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\images
  copying images\snake-whiskey.jpg -> build\lib.win-amd64-3.8\mod_wsgi\images
  running build_ext
  building 'mod_wsgi.server.mod_wsgi' extension
  creating build\temp.win-amd64-3.8
  creating build\temp.win-amd64-3.8\Release
  creating build\temp.win-amd64-3.8\Release\src
  creating build\temp.win-amd64-3.8\Release\src\server
  C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\bin\HostX86\x64\cl.exe /c /nologo /Ox /W3 /GL /DNDEBUG /MD -ID:\Apache24/include -IC:
\Python38\include -IC:\Python38\include "-IC:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\ATLMFC\include" "-IC:\Program Files (x86)\Mi
crosoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\include" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\ucrt" "-IC:\Program Files (x86)\Windows
Kits\10\include\10.0.17763.0\shared" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\um" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\winrt" "
-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\cppwinrt" /Tcsrc/server\mod_wsgi.c /Fobuild\temp.win-amd64-3.8\Release\src/server\mod_wsgi.obj
  mod_wsgi.c
  d:\apache24\include\apr_network_io.h(29): fatal error C1083: 无法打开包括文件: “apr_perms_set.h”: No such file or directory
  error: command 'C:\\Program Files (x86)\\Microsoft Visual Studio\\2017\\Community\\VC\\Tools\\MSVC\\14.16.27023\\bin\\HostX86\\x64\\cl.exe' failed with exit status 2

  ----------------------------------------
  Running setup.py clean for mod-wsgi
Failed to build mod-wsgi
Installing collected packages: mod-wsgi
  Running setup.py install for mod-wsgi: started
    Running setup.py install for mod-wsgi: still running...
    Running setup.py install for mod-wsgi: finished with status 'error'
    Complete output from command c:\users\yuangezhizao\.virtualenvs\lab-hvyfm2bd\scripts\python.exe -u -c "import setuptools, tokenize;__file__='C:\\Users\\YUANGE~1\\AppData\\
Local\\Temp\\pip-install-48e8tnl_\\mod-wsgi\\setup.py';f=getattr(tokenize, 'open', open)(__file__);code=f.read().replace('\r\n', '\n');f.close();exec(compile(code, __file__, '
exec'))" install --record C:\Users\YUANGE~1\AppData\Local\Temp\pip-record-h7vjkitd\install-record.txt --single-version-externally-managed --compile --install-headers c:\users\
yuangezhizao\.virtualenvs\lab-hvyfm2bd\include\site\python3.8\mod-wsgi:
    C:\Python38\Lib\distutils\dist.py:274: UserWarning: Unknown distribution option: 'bugtrack_url'
      warnings.warn(msg)
    running install
    running build
    running build_py
    creating build
    creating build\lib.win-amd64-3.8
    creating build\lib.win-amd64-3.8\mod_wsgi
    copying src\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi
    creating build\lib.win-amd64-3.8\mod_wsgi\server
    copying src\server\apxs_config.py -> build\lib.win-amd64-3.8\mod_wsgi\server
    copying src\server\environ.py -> build\lib.win-amd64-3.8\mod_wsgi\server
    copying src\server\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server
    creating build\lib.win-amd64-3.8\mod_wsgi\server\management
    copying src\server\management\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management
    creating build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
    copying src\server\management\commands\runmodwsgi.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
    copying src\server\management\commands\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\server\management\commands
    creating build\lib.win-amd64-3.8\mod_wsgi\docs
    copying docs\_build\html\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\docs
    creating build\lib.win-amd64-3.8\mod_wsgi\images
    copying images\__init__.py -> build\lib.win-amd64-3.8\mod_wsgi\images
    copying images\snake-whiskey.jpg -> build\lib.win-amd64-3.8\mod_wsgi\images
    running build_ext
    building 'mod_wsgi.server.mod_wsgi' extension
    creating build\temp.win-amd64-3.8
    creating build\temp.win-amd64-3.8\Release
    creating build\temp.win-amd64-3.8\Release\src
    creating build\temp.win-amd64-3.8\Release\src\server
    C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\bin\HostX86\x64\cl.exe /c /nologo /Ox /W3 /GL /DNDEBUG /MD -ID:\Apache24/include -I
C:\Python38\include -IC:\Python38\include "-IC:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\ATLMFC\include" "-IC:\Program Files (x86)\
Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.16.27023\include" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\ucrt" "-IC:\Program Files (x86)\Window
s Kits\10\include\10.0.17763.0\shared" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\um" "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\winrt"
 "-IC:\Program Files (x86)\Windows Kits\10\include\10.0.17763.0\cppwinrt" /Tcsrc/server\mod_wsgi.c /Fobuild\temp.win-amd64-3.8\Release\src/server\mod_wsgi.obj
    mod_wsgi.c
    d:\apache24\include\apr_network_io.h(29): fatal error C1083: 无法打开包括文件: “apr_perms_set.h”: No such file or directory
    error: command 'C:\\Program Files (x86)\\Microsoft Visual Studio\\2017\\Community\\VC\\Tools\\MSVC\\14.16.27023\\bin\\HostX86\\x64\\cl.exe' failed with exit status 2

    ----------------------------------------

Error:  An error occurred while installing mod_wsgi!
  Failed building wheel for mod-wsgi
Command "c:\users\yuangezhizao\.virtualenvs\lab-hvyfm2bd\scripts\python.exe -u -c "import setuptools, tokenize;__file__='C:\\Users\\YUANGE~1\\AppData\\Local\\Temp\\pip-install
-48e8tnl_\\mod-wsgi\\setup.py';f=getattr(tokenize, 'open', open)(__file__);code=f.read().replace('\r\n', '\n');f.close();exec(compile(code, __file__, 'exec'))" install --recor
d C:\Users\YUANGE~1\AppData\Local\Temp\pip-record-h7vjkitd\install-record.txt --single-version-externally-managed --compile --install-headers c:\users\yuangezhizao\.virtualenv
s\lab-hvyfm2bd\include\site\python3.8\mod-wsgi" failed with error code 1 in C:\Users\YUANGE~1\AppData\Local\Temp\pip-install-48e8tnl_\mod-wsgi\

它……自动用VS2017编译了……果然还是不行……

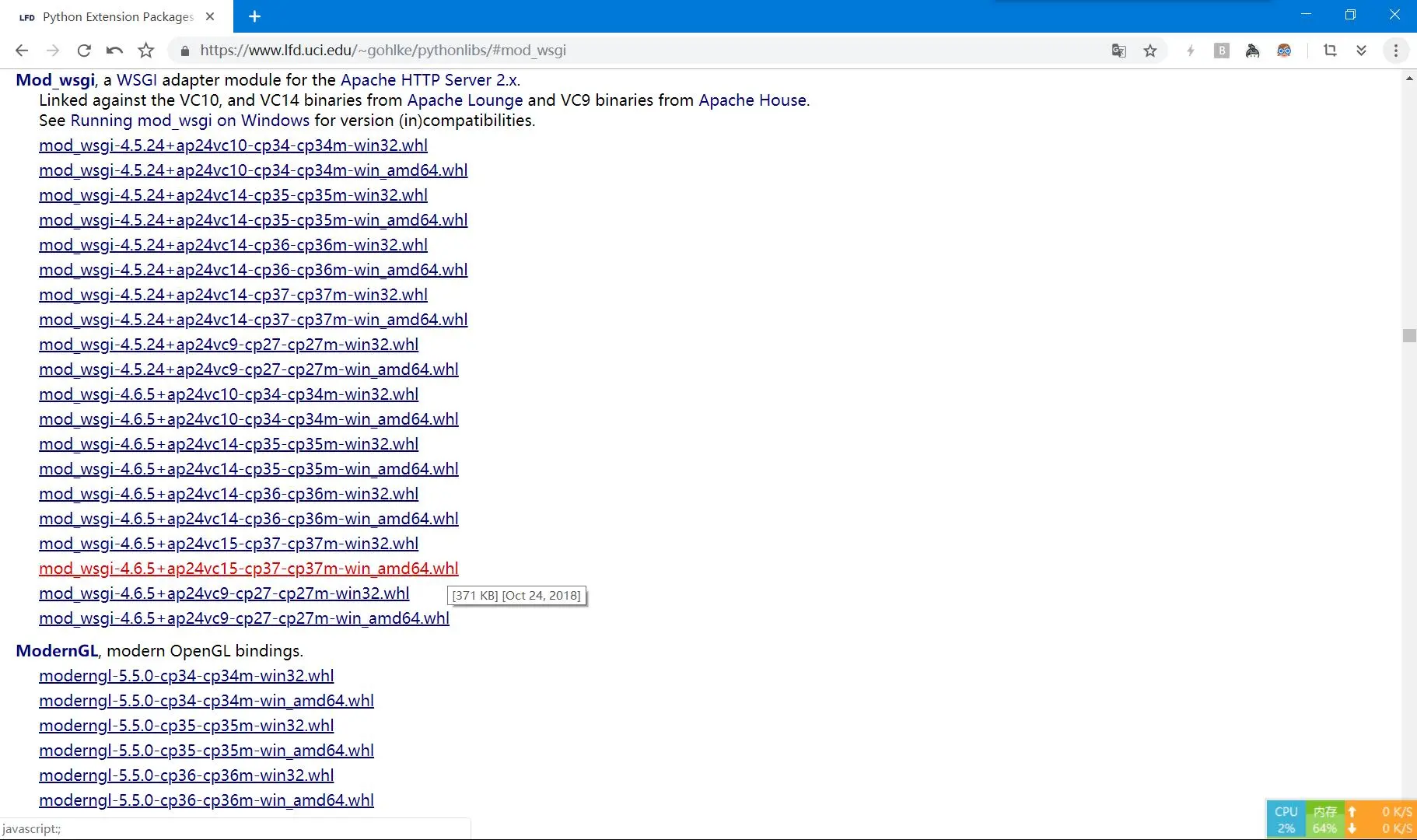

然后就去下载whl了

Running mod_wsgi on Windows这个上古教程实在是太老了……

pip安装即可，顺便解压找到mod_wsgi.cp37-win_amd64.pyd扔到models目录里
附上wgsi.py文件

# activate_this = "C:\\Users\\Administrator\\.virtualenvs\\LAB-QaV1et56\\Scripts\\activate_this.py"
# with open(activate_this) as file_:
#    exec(file_.read(), dict(__file__=activate_this))

import sys
import logging

logging.basicConfig(stream=sys.stderr)

# Expand Python classes path with your app's path
sys.path.insert(0, "C:\LAB")

from run import app

# Put logging code (and imports) here ...

# Initialize WSGI app object
application = app

0x03.RabbitMQ

看到日志文件竟有十兆之大，本能地随手就给打开了：C:/Users/Administrator/AppData/Roaming/RabbitMQ/log/rabbit@cn-tx-bj1-w2d.log
然后前面都是正常的，结果从code的预览就能看到后面全是一样的，每5s一条的：
2020-02-14 19:29:12.010 [error] <0.513.0> Could not find handle.exe, please install from sysinternals
谷歌一下子就搜到了解决方案，Could you help me to clarify what this error means?”Could not find handle.exe, please install from sysinternals”

Eddie Murphy (Employee)
2 months ago

When you first log in to the RabbitMQ web dashboard, under the Overview tab you will notice that in the File descriptors field there is a question mark about the missing Handle.exe. Handle.exe enables RabbitMQ to monitor the local file system. Download it from here: https://docs.microsoft.com/en-us/sysinternals/downloads/handle
Extract this file. It is important that you keep a note of the extracted path as we will need to add it to PATH environment variable so it is available to RabbitMQ.
Open the Environment Variables Windows, scroll down to the System Variables -> Path variable and click on Edit. At the end of the Variable Value, add the path to the Handle.exe by the path above
Restart the RabbitMQ
rabbitmq-service.bat stop
rabbitmq-service.bat start

于是下载Handle v4.22，才701 KB……解压之后将其路径加入环境变量，重启服务问题解决(^_−)☆

You can also get a GUI-based version of this program, Process Explorer, here at Sysinternals.

然后看到Process Explorer竟然是一个基于它的图形化程序，惊了

0x05.升级至`Python 3.10.0`

明明已经安装了VS2019，可还是报错草

今晚去下载编译工具发现Visual Studio 2022都出了草

于是，去下载Visual Studio 2022 生成工具

参照WindowsCompilers的说明，首先pip install --upgrade setuptools，然后Microsoft Visual C++ 14.2 standalone: Build Tools for Visual Studio 2019 (x86, x64, ARM, ARM64)

This is a standalone version of Visual C++ 14.2 compiler, you don’t need to install Visual Studio 2019.
Install Microsoft Build Tools for Visual Studio 2019.
In Build tools, install C++ build tools and ensure the latest versions of MSVCv142 - VS 2019 C++ x64/x86 build tools and Windows 10 SDK are checked.
The setuptools Python package version must be at least 34.4.0.
{i} Build Tools also allows to install any previous Visual C++ 14 version (Including 2015, 2017 ones).

然后终于好使了，最后卸载2019只留个2022就好啦（顺便py39也光速被卸载了

**********************************************************************
** Visual Studio 2022 Developer Command Prompt v17.0.1
** Copyright (c) 2021 Microsoft Corporation
**********************************************************************

E:\Program Files (x86)\Microsoft Visual Studio\2022\BuildTools>

0x04.后记

未完待续……
